Quick7

What is Quick7

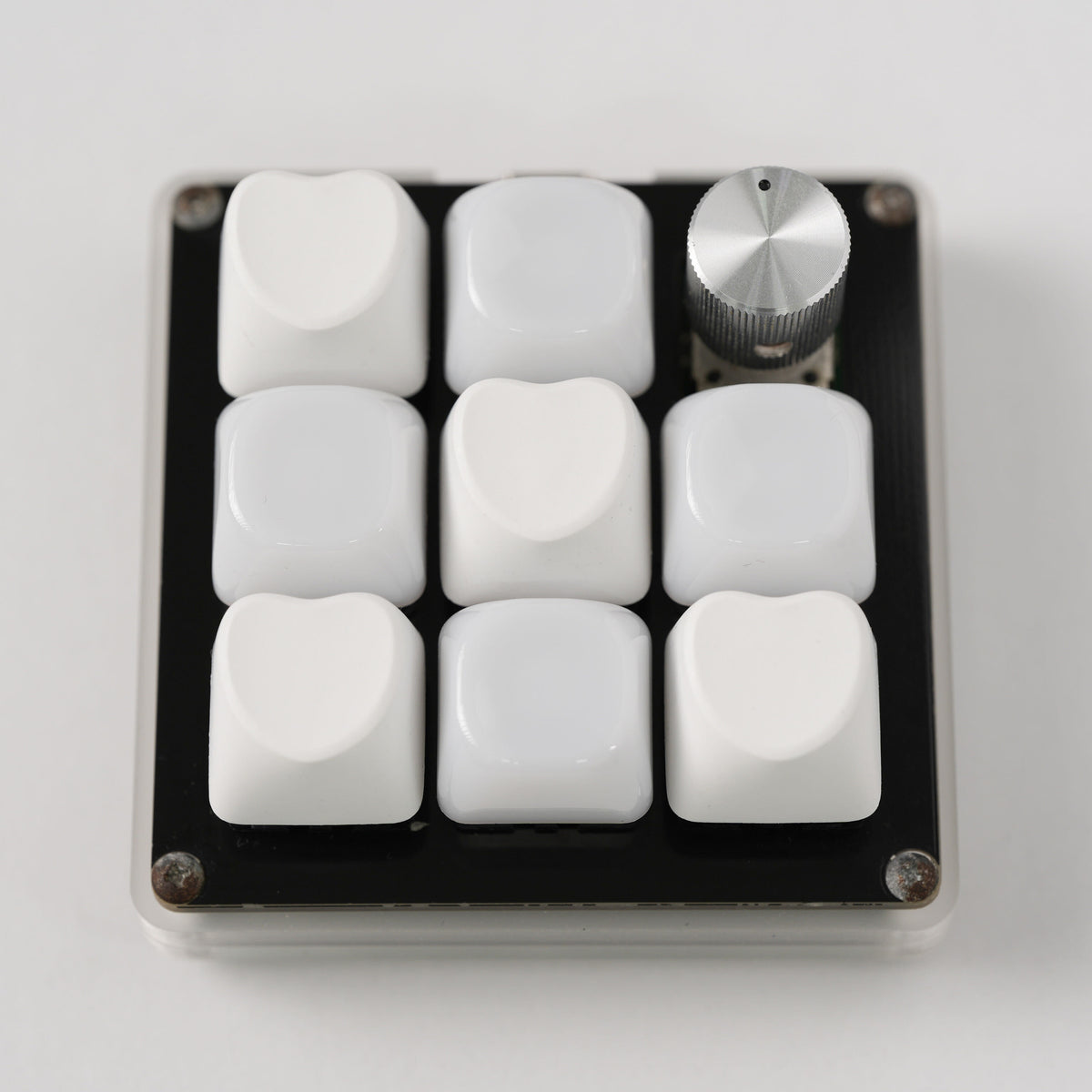

Simple, quick and ready to use, this macro pad can be used with up to 9 3x3 / or up to 2 rotary encoders (sold separately) with 7 keyswitches.
See also this blog post .

Other features

• Only compatible with Cherry MX and compatible switches
• Addressable full-color LED that is easy to solder (SK6812 MINI-E compatible product)

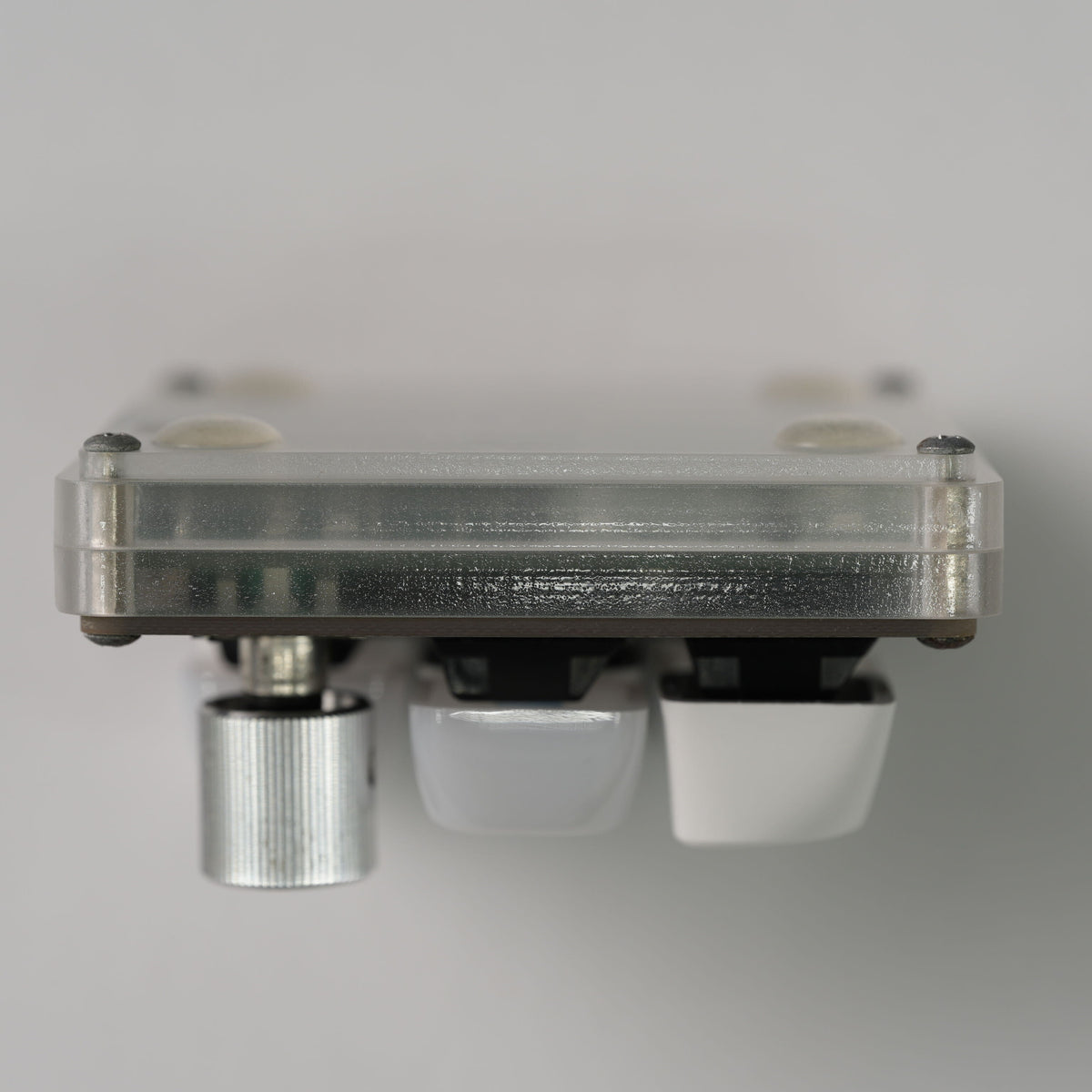

• 10mm thick acrylic plate to prevent dust from entering

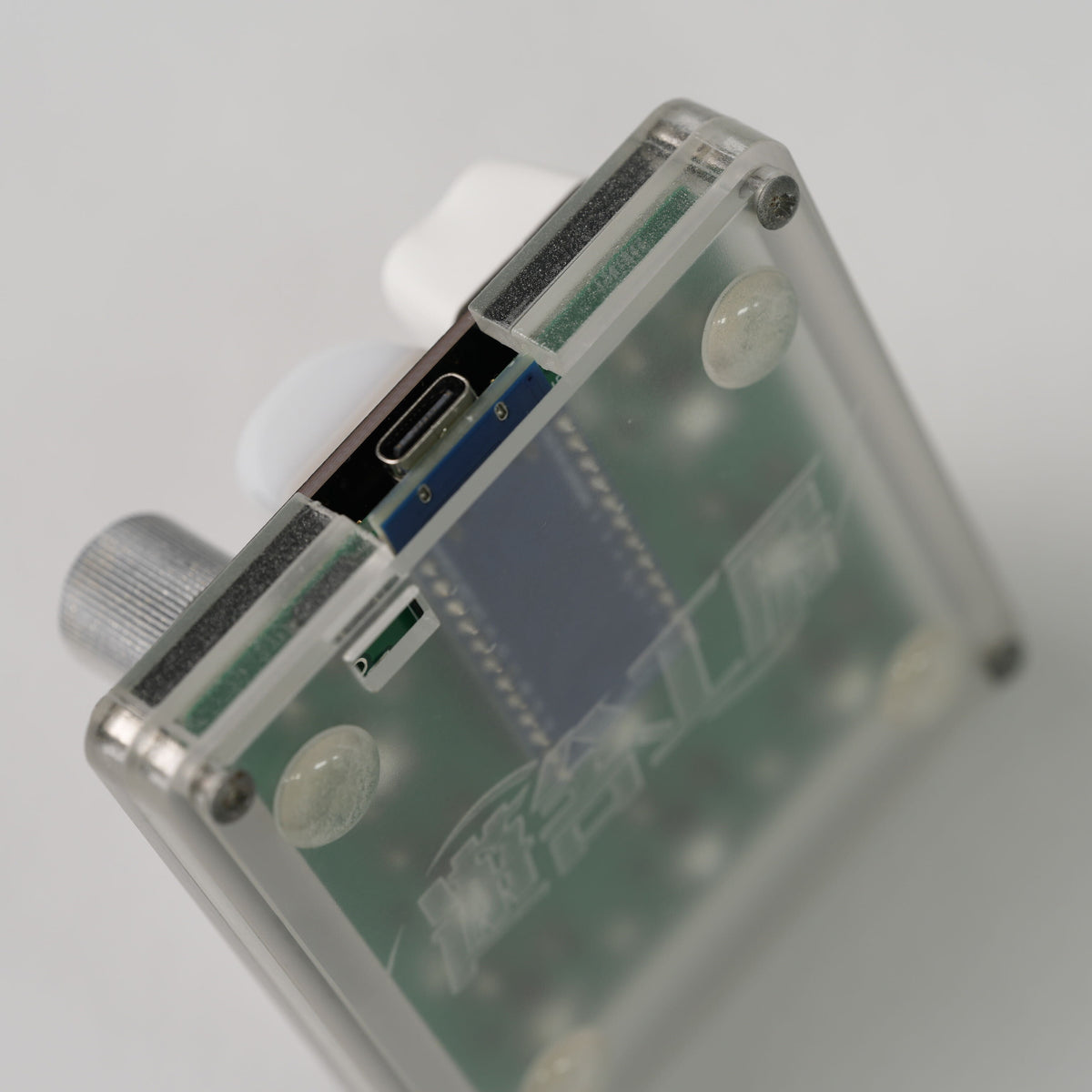

• Notch for Pro Micro compatible products using USB Type-C connector such as Elite-C

Contents

• 1 board
• 1 top plate
• 1 acrylic middle plate

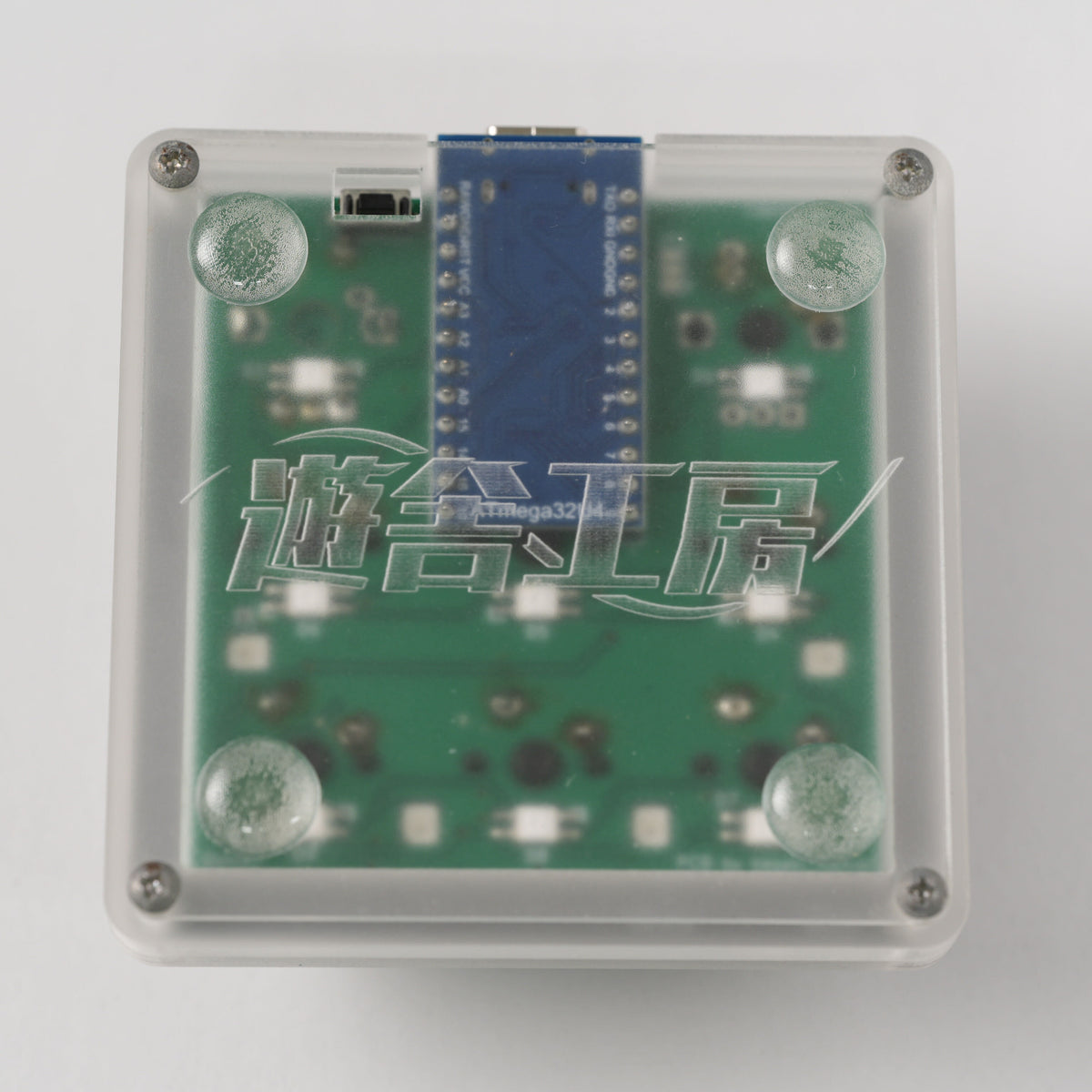

• 1 acrylic bottom plate
• 1 Pro Micro
• 2 conthroughs
• 1 tact switch
• 4 M2 spacers 10mm
• 8 M2 screws 4mm
• 13 LEDs (SK6812MINI-E compatible)
• 4 rubber feet

In addition to this, a key switch and keycap (7 to 9 pieces each) are required for assembly, and a rotary encoder body and knob (1 to 2 pieces) are required when using the rotary encoder.
The key switch here from, the key cap is able purchase from the one here is convenient.
Click here for a rotary encoder with a knob.

please note

• This kit requires'soldering' to assemble. If you do not have one, we have a convenient tool set , so please consider it as well.
• Please note that Kailh Choc switch and Kailh Mid-height switch are not supported .
• Due to the processing of the product, some parts of the acrylic middle plate may be blurred, but this is a specification and we cannot accept returns or exchanges.
• Product details / product specifications are subject to change without notice. Please note.
• The photo is a sample created and is not the same as the product content.

Click here for the build guide.
