Description

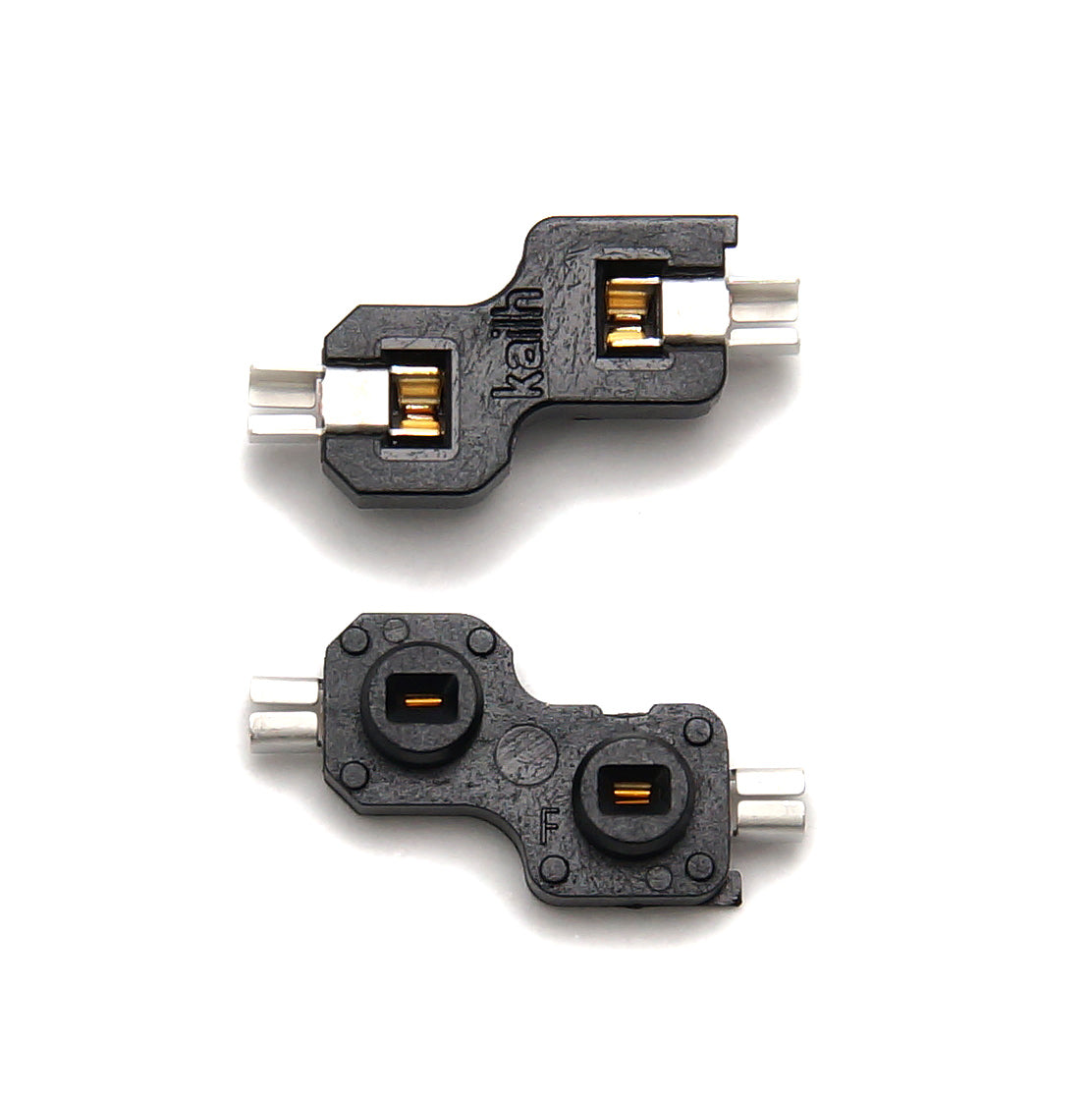

A socket that allows the switch to be replaced.
A specially designed PCB is required for use. (Helix and Helix Pico are not supported)
Available for MX and Kaylh Choc low profile.

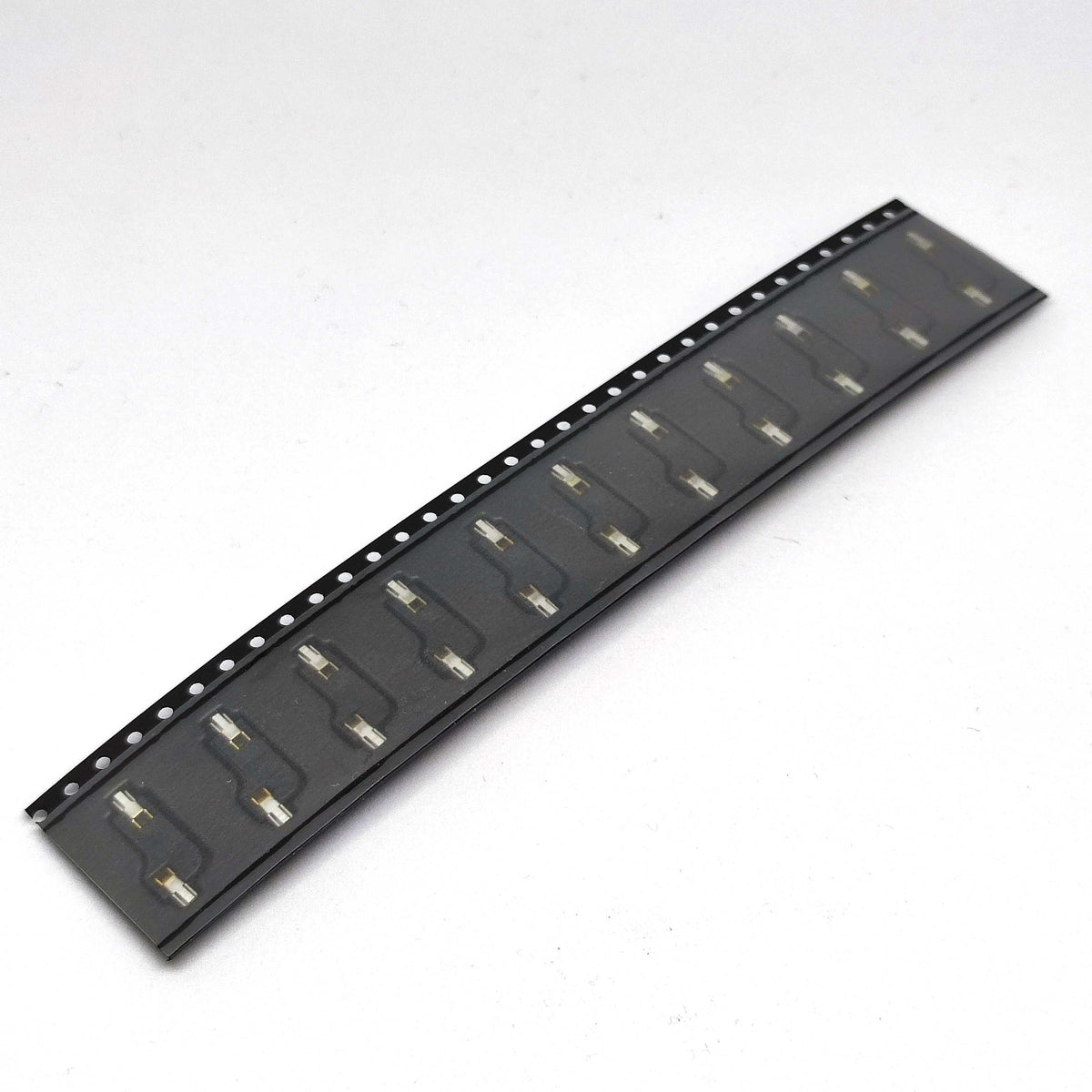

10 pieces per pack
Common specifications
Rated voltage: 12V AC / DC (maximum) and 2V DC (minimum)
Rated current: 10mA AC / DC (maximum) and 10μA DC (minimum)
Contact resistance: 100mΩ (maximum)
Insulation resistance: 100MΩ at 500V
Withstand voltage: AC100V (50-60Hz) for 1 minute
Insertion force : Maximum 3.0kgf
Operating life: 100 cycles (switch can be replaced 100 times)
Model number for MX: CPG151101S11
Data sheet
Kailh Choc for low profile
Model: CPG135001S30
Data sheet
