What is Keyball39
This is a self-made keyboard kit that aims to install a 100% user-friendly thumb trackball on a compact left and right separated keyboard with a minimum number of keys.
The columns are staggered so that each finger can be naturally placed on the home position, and a 34mm trackball is attached near the thumb keys to enable mouse operation without disturbing the home position. .
It is very compact with 39 keys in total on the left and right, but it has enough thumb keys and bottom row keys, and you can assign Modify keys abundantly. In addition, the key layout on the side without the trackball is close to the numeric keypad.
The motion sensor is placed on the side of the ball to make it as thin as possible, so it does not get in the way even when the trackball is held in the palm of your hand.
The trackball holding case is injection molded and feels smooth to the touch. The precision is good, so it holds the ball well and does not fall even if the keyboard is turned upside down.
The reversible design allows left-handed users to switch the left and right boards to assemble and operate the trackball with the left hand.

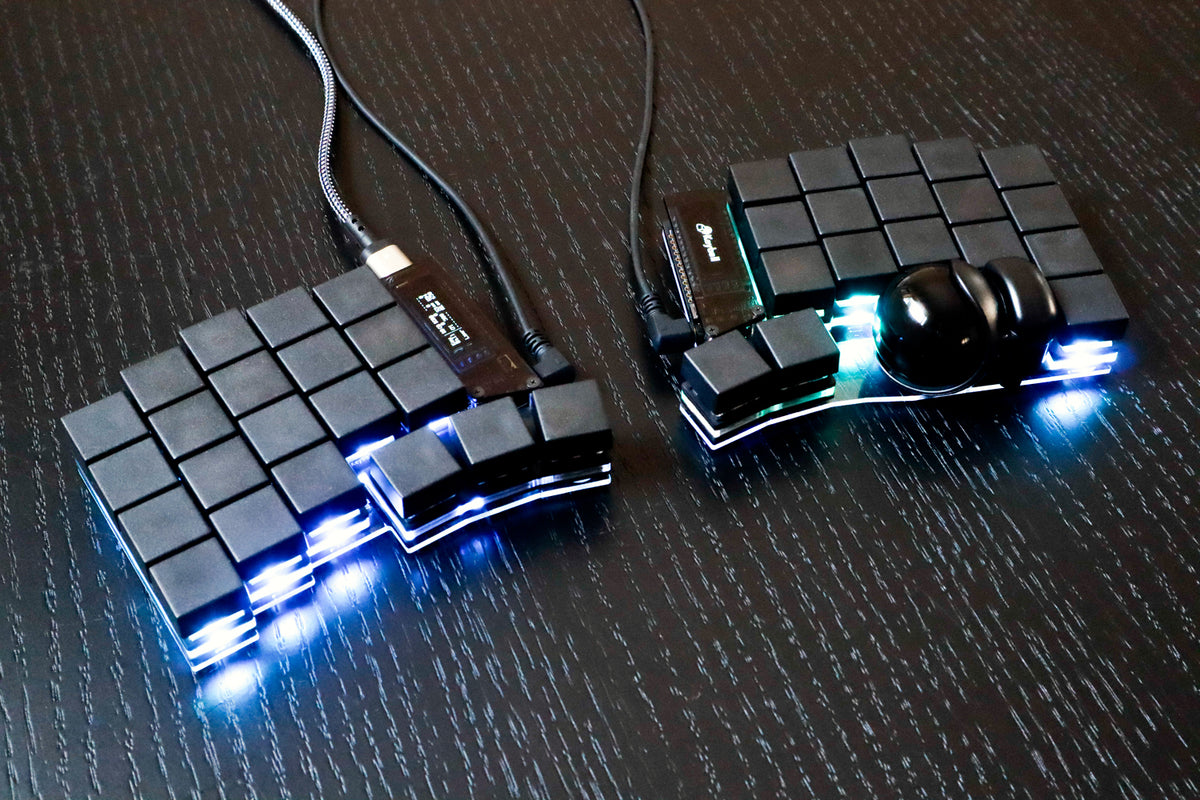

In addition to the underglow, LEDs can also be mounted on the back of all keys except for the thumb keys (46 left and right total). The full-color LED (SK6812MINI-E) is not included in the kit, so please purchase it separately. A tabbed type is used for easy soldering.
The OLED module is mounted on both the left and right sides as standard.
It supports Kailh PCB sockets and can be hot-swapped with Cherry MX compatible switches. You can also change the thumb key only to Kailh Choc low profile switches to reduce the strain on your wrist.

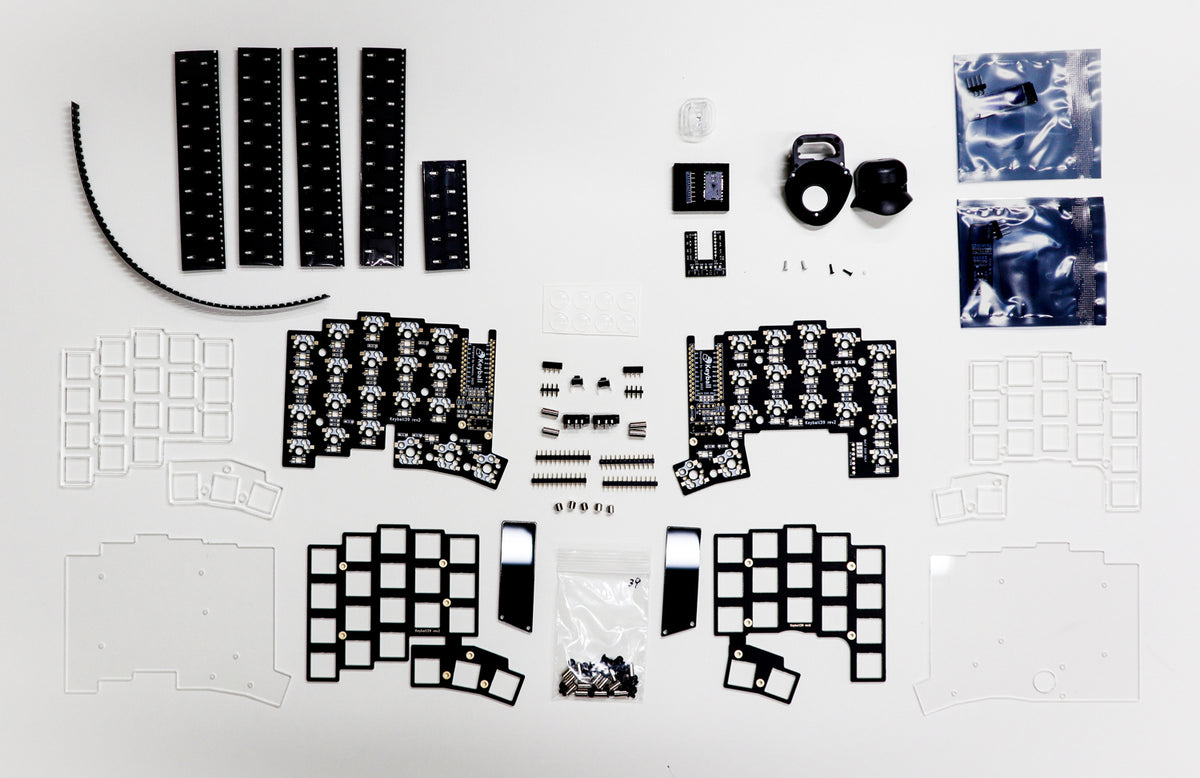

[Items included in the kit]
- Middle PCB (left and right) … 1 set
- Top PCB (left and right) … 1 set
- Middle acrylic plate (left and right) … 1 pair (including thumb)
- Bottom acrylic plate (left and right) … 1 set
- ProMicro protection plate (left and right set) … 1 set
- 34mm Trabo case (upper and lower) … 1 set
- Φ2 ceramic ball (spare) … 1 piece
- Trackball reader board ... 1 sheet
- L-shaped through pin (7 pin) … 1 piece
- Trackball reading IC ... 1 piece
- Reading IC lens ... 1 piece
- Flat head screw M1.7 … 2 pieces
- Small head screw M1.7 … 2 pieces
- TRRS jack ... 2
- Tact switch ... 2 pieces
- ProMicro pin socket + pin header (12 pins) … 4 sets
- Diode (chip type) … 50+
- OLED module … 2 pieces
- OLED pin socket + pin header … 2 sets
- Spacer M2 11mm … 4 pieces
- Screw M2 3.5mm … 34 +
- Cushion rubber ... 8 pieces
- PCB socket for MX switch … 42 +
- Spacer M2 7mm … 13 +
- PCB socket for Choc switch … 5 pieces (used for thumb low profile)
- Spacer M2 4mm … 5 pieces (used for thumb low profile)
[Not included in the kit, but the following is required]
- ProMicro … 2 You can choose a cheap one or one that can use USBTypeC. Four pairs of pin headers are included in the kit, so only the microcomputer board is required.
- Cherry MX compatible key switch … 39 pieces (34 pieces for thumb low-pro specification)
- choc compatible low profile key switch … 5 pieces (thumb low profile specification only)
- 34mm trackball of your favorite color … 1 piece
- TRS cable for left and right connection (TRRS cable is also acceptable)
- USB cable (Type-B or C) to be inserted into ProMicro
[Although not included in the kit, the following can be installed]
- SK6812MINI-E … 46 pieces
Trackball operation was checked with Perix PERIPRO-303 GR 34mm replacement trackballs in red, black, blue, green, and gold.
[How to assemble]
Keyball39 is a kit that requires assembly.
How to assemble is explained on the following page.

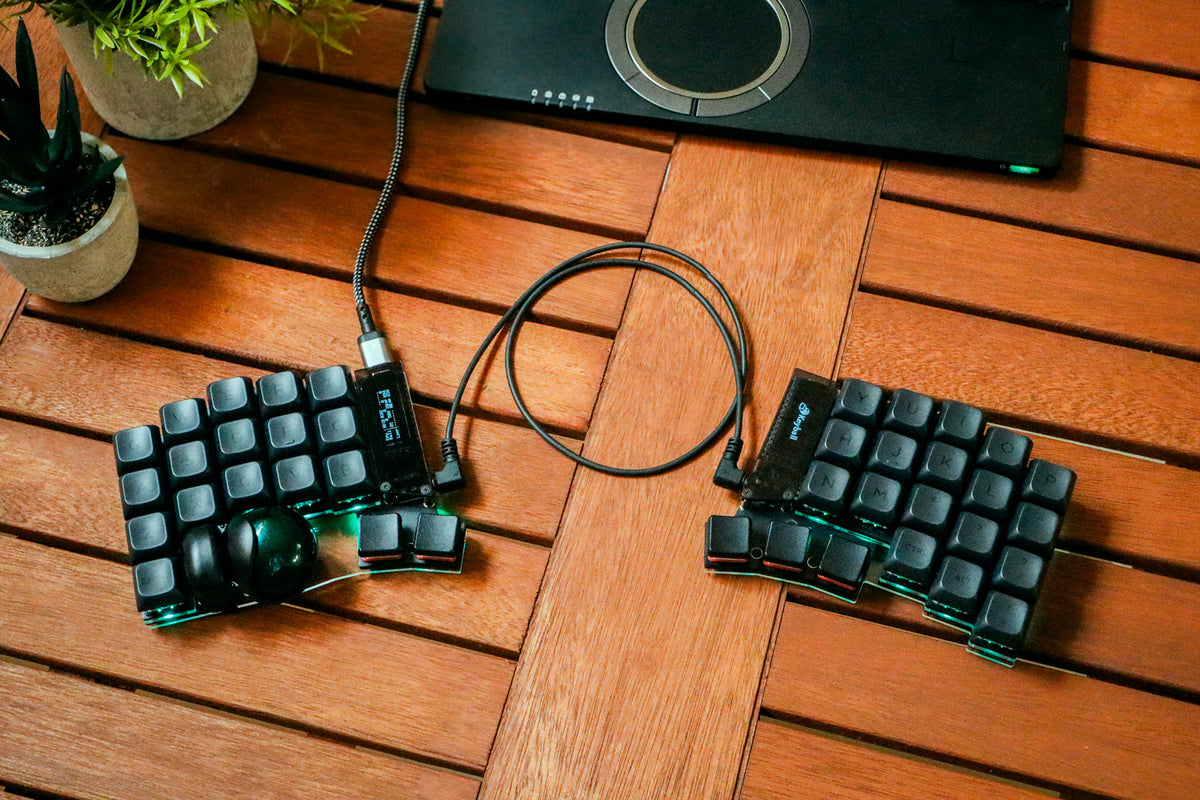

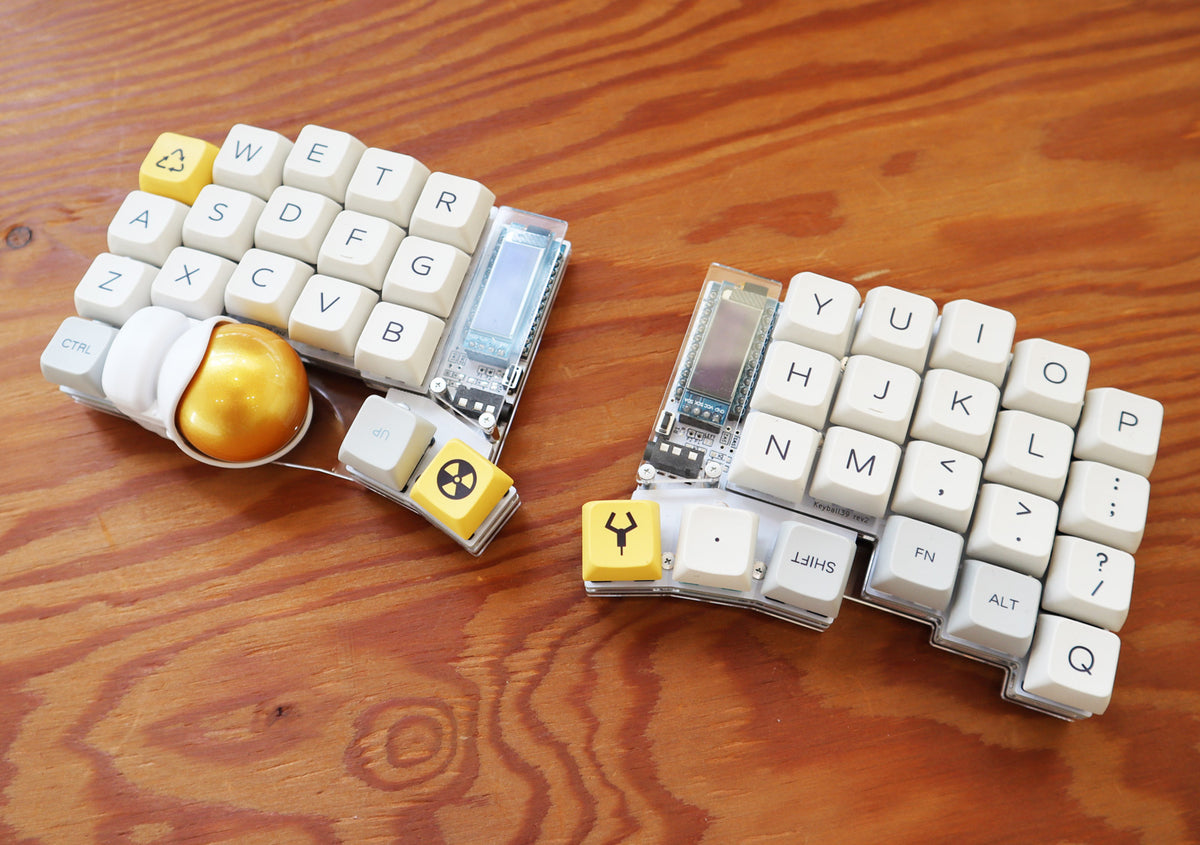

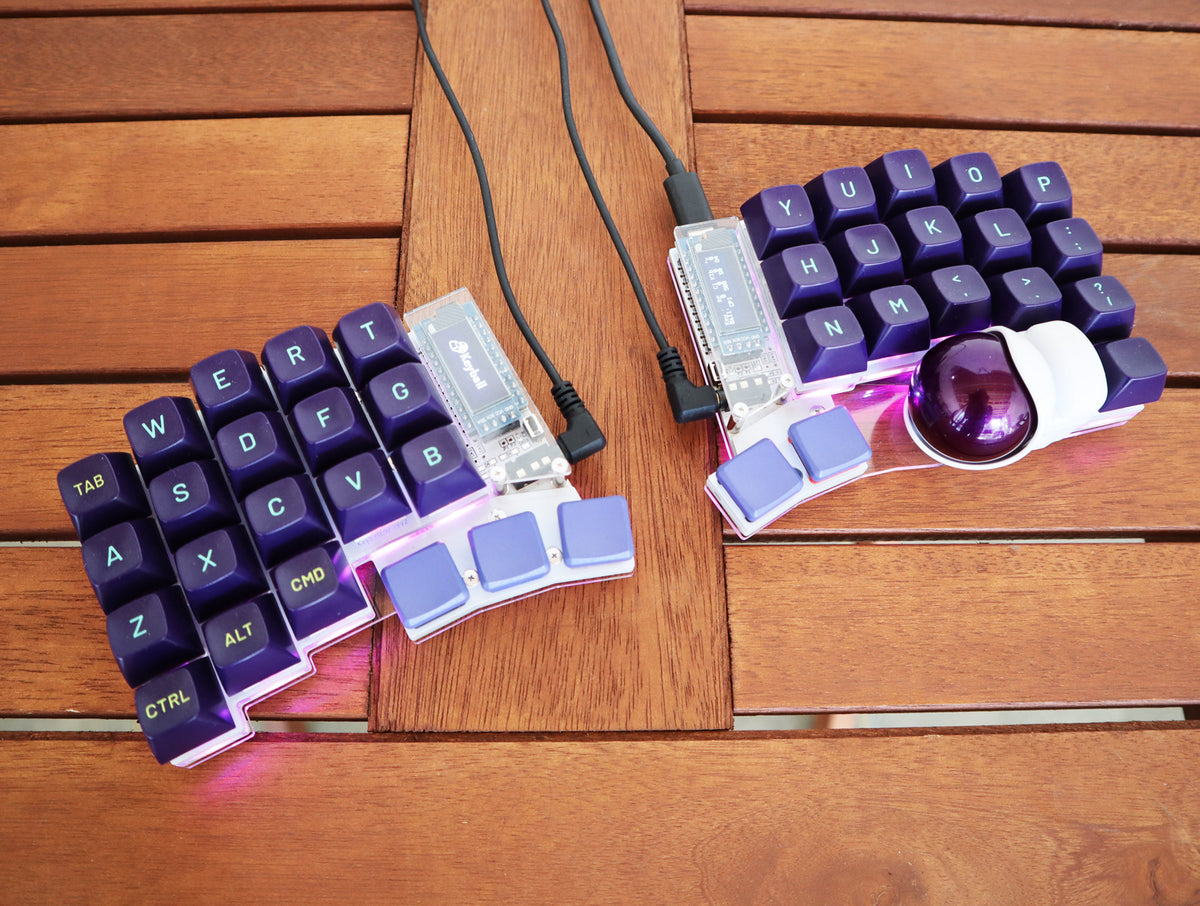

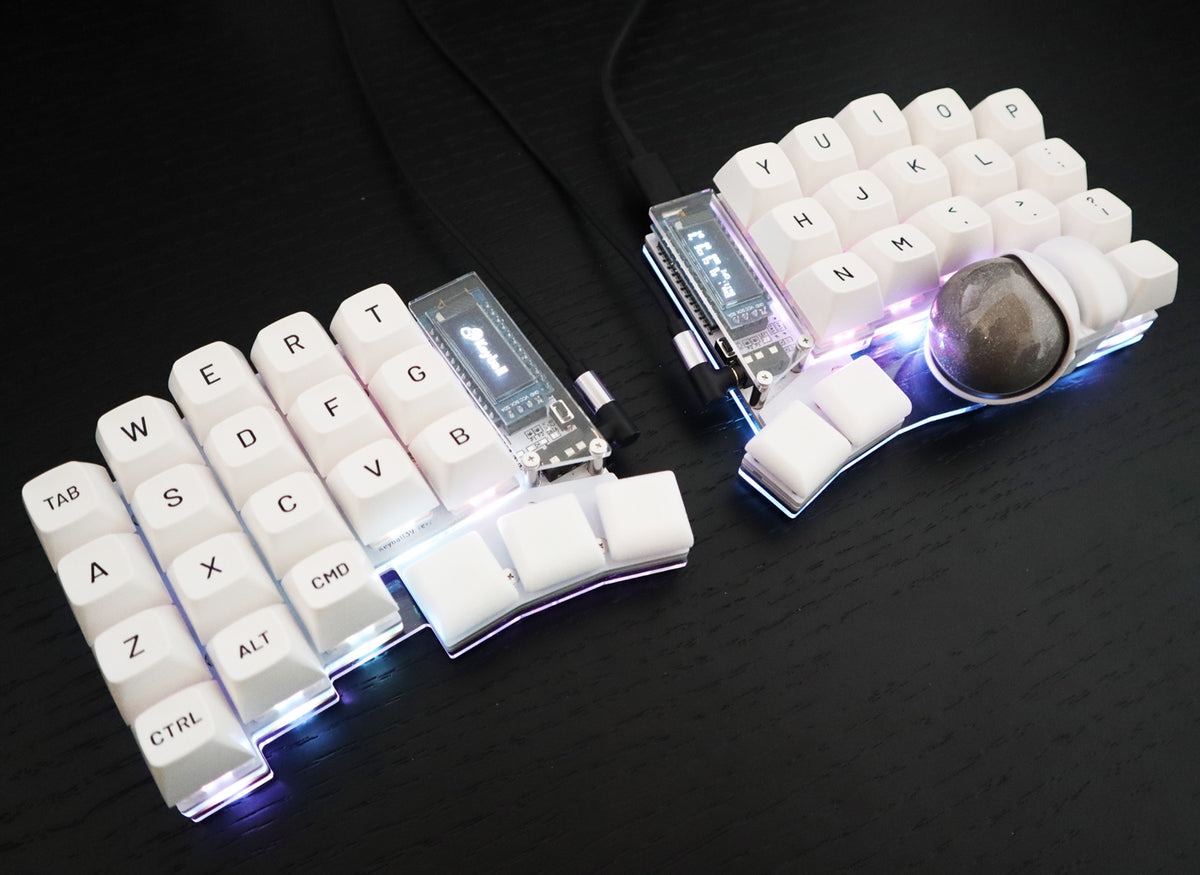

The photo is a creation sample and is not the same as the product content.
Specifications and prices are subject to change without notice.
