[GB] IKKI68 Aurora x PnC

Wuque StudioSKU: A0100AP-01-1
No reviews

IKKI68 Aurora x PnC: Aurora x PnC Kit
Price:
Sale price¥22,660

Tax included

Stock:
Sold out

Description

This GB has expired.

This product is a Group Buy of IKKI68 Aurora x PnC.
Yusha Kobo will be the proxy for this Group Buy in Japan.

Orders will be accepted at 18:00 on Saturday, May 15, 2021 Japan time. After the recruitment period ends, an order will be placed and manufacturing will begin. It is scheduled to be shipped around October 2021, but it may take longer depending on the manufacturing situation.


* Parts included differ depending on the kit, so please check the explanation below carefully.
* Wireless PCB is not available at Yusha Kobo.
* The kit does not include keycaps and key switches.
* Product images include CG rendering and prototypes. Please note that it may differ from the actual product.

Group Buy information


Start: 2021/4/16 18:00
End: 2021/5/15 18:00
Shipment start: May end early after October 2021. Please order as soon as possible.

Product Summary

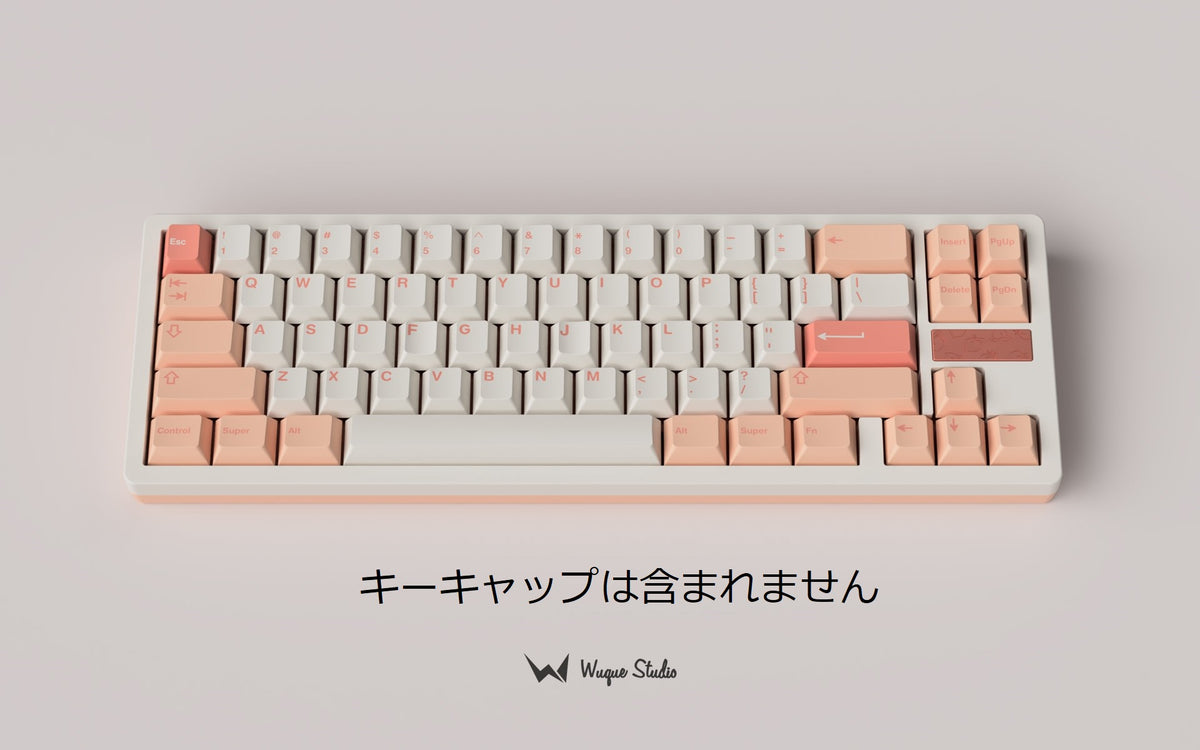

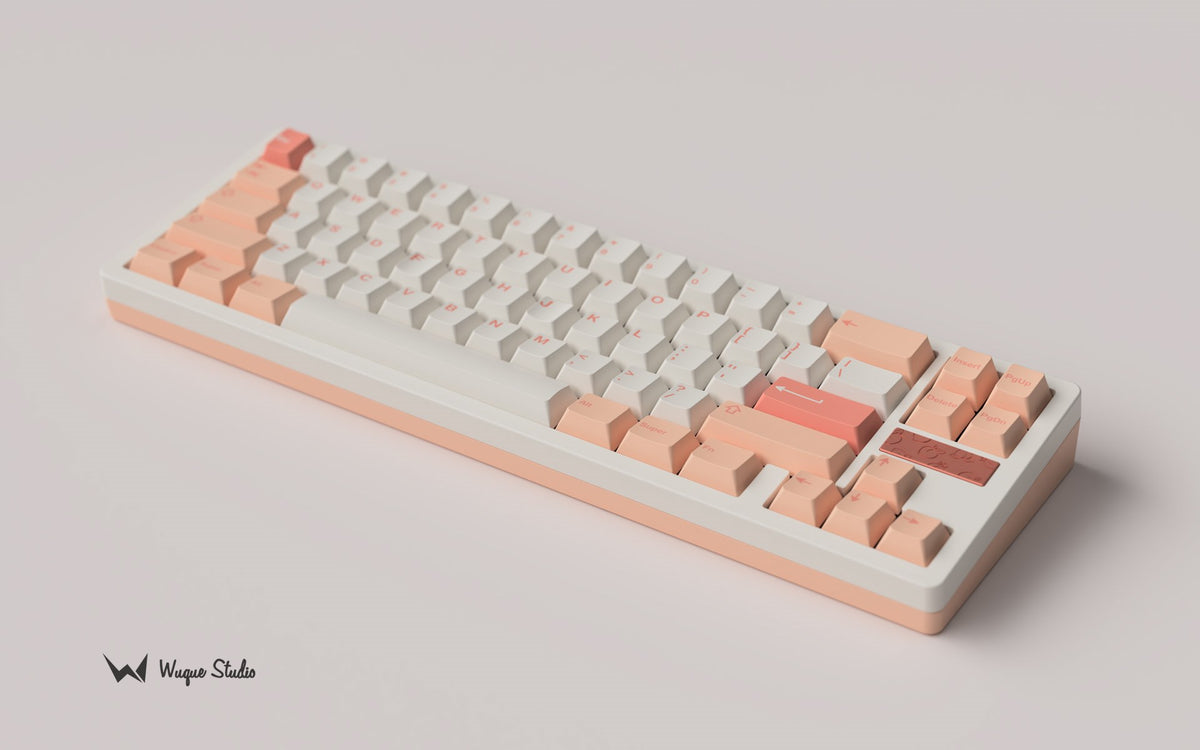

The Ikki68 Aurora is an affordable gasket mount keyboard kit with an injection molded polycarbonate case.

Aurora comes with a multi-layout hot-swap PCB with QMK and VIA. You can choose any or all of the following: split backspace, split right shift, split left shift, split space bar, ISO input ... no soldering required!

Aurora uses a variable gasket structure that allows you to adjust the amount of bounce / hardness to your liking by choosing the number of mounting points to use.

kit

Aurora x PnC (limited to 40 units)


Details

-Weight: 1,120 g (weight assembled using switch, stabilizer, GMK keycap)
800g (main unit only)
・ Case finish: Matte ・ Typing angle: 6.5 degrees


Variable Gasket Mount System There are 10 tips with gaskets on the top that snap to the lower case. Chips B, D, G and J are optional. Set more tips for a more solid type of feel and reduce if you want bouncy feedback.


Layout support for default hot-swapped PCBs (Fairbanks) and Lapland PCBs. See the PCB section below for more information.

Contents

Aurora x PnC
・ Ikki68 Aurora PC case x1
-PCB QMK compatible, multi-layout, hot swap, wired (Fairbanks) x1
・ Hot swap name badge set x1
・ Default aluminum plate x1
・ Silicon pad x1 sandwiched between Plate and PCB
・ Silicon pad x1 sandwiched between PCB and Case

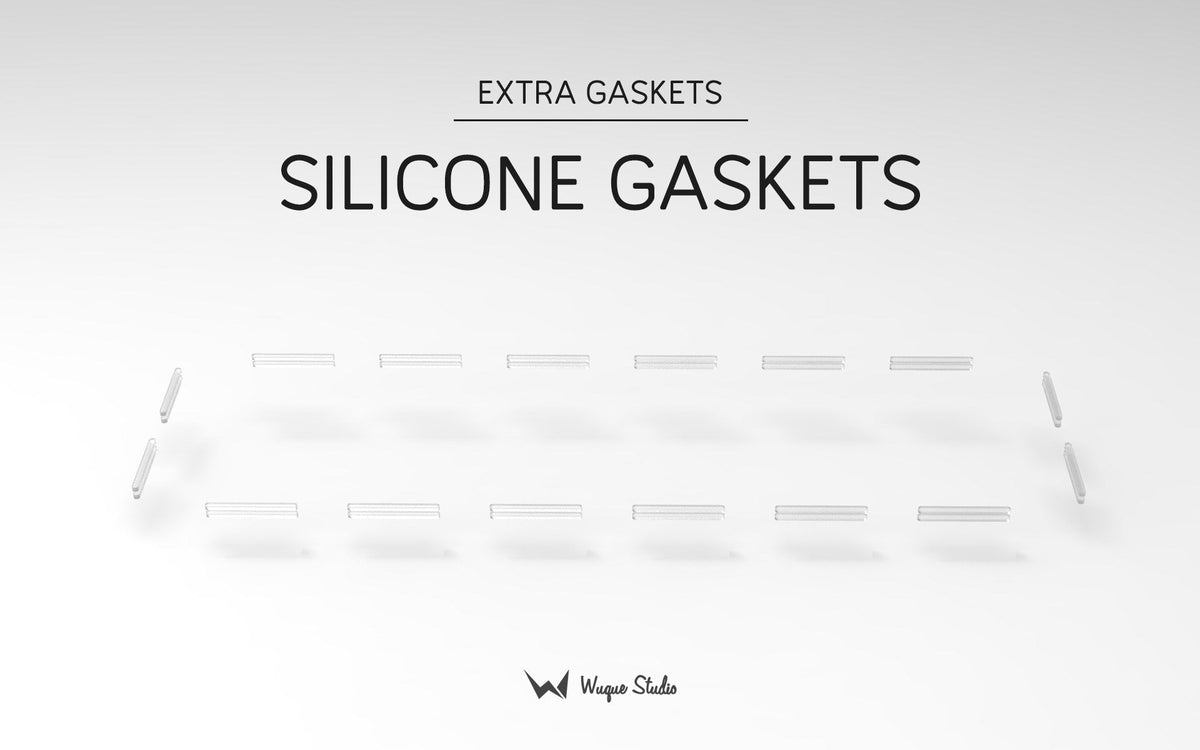

・ Silicon gasket set x1

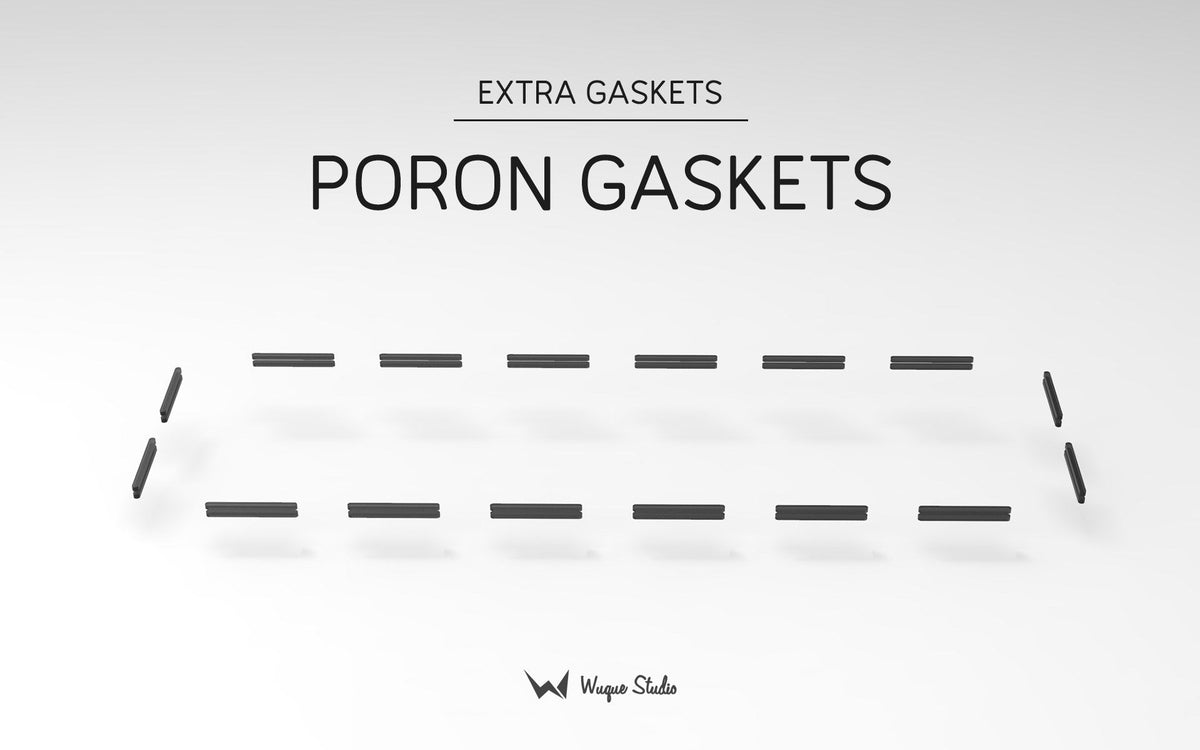

・ Poron gasket set x1

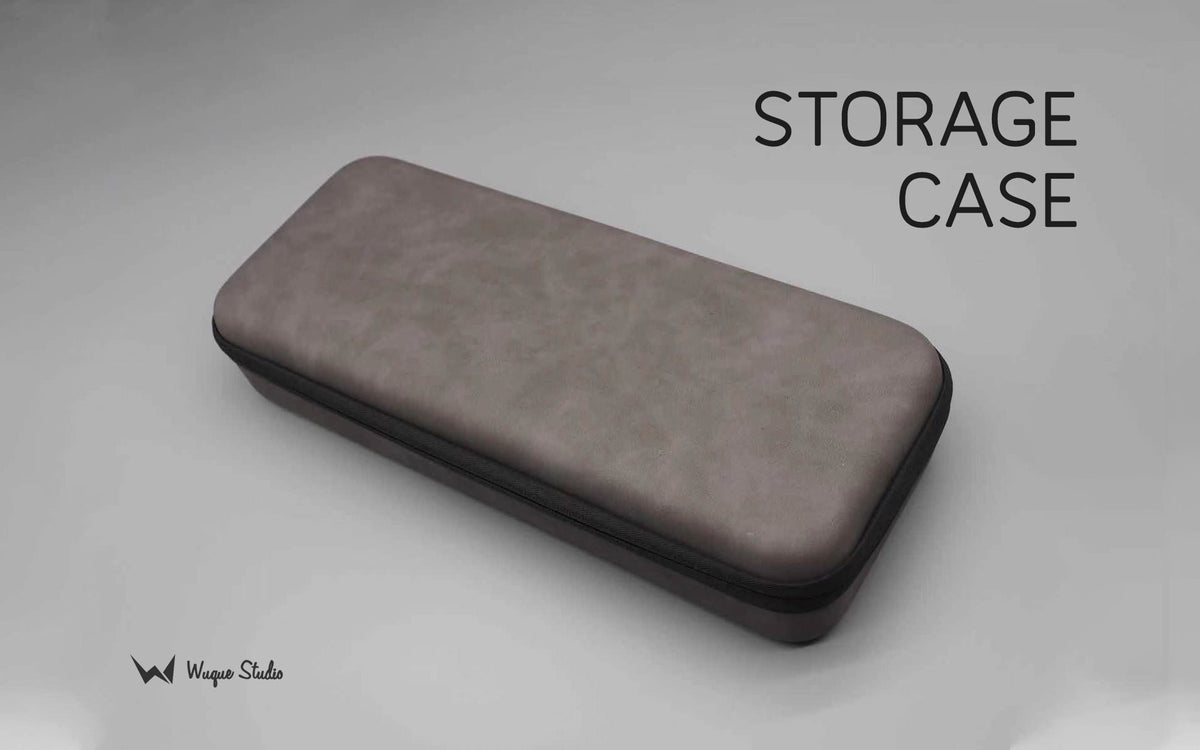

・ Storage Bag x1
・ Coiled USB cable x1

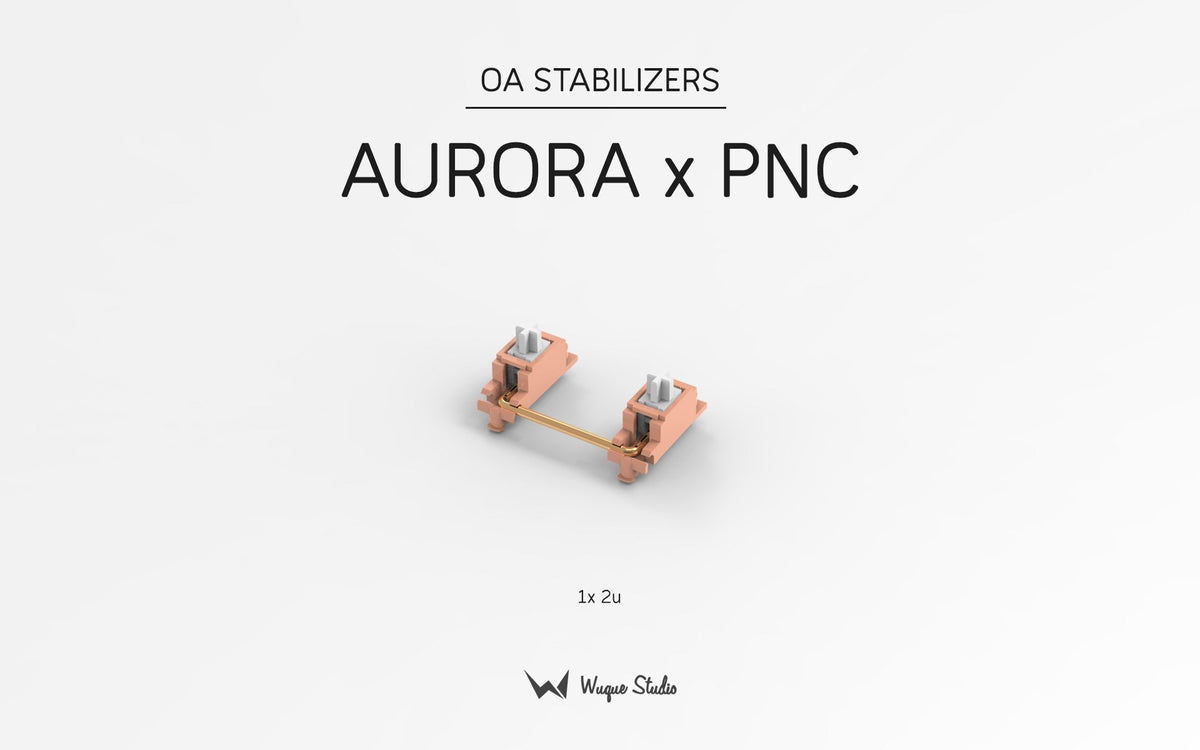

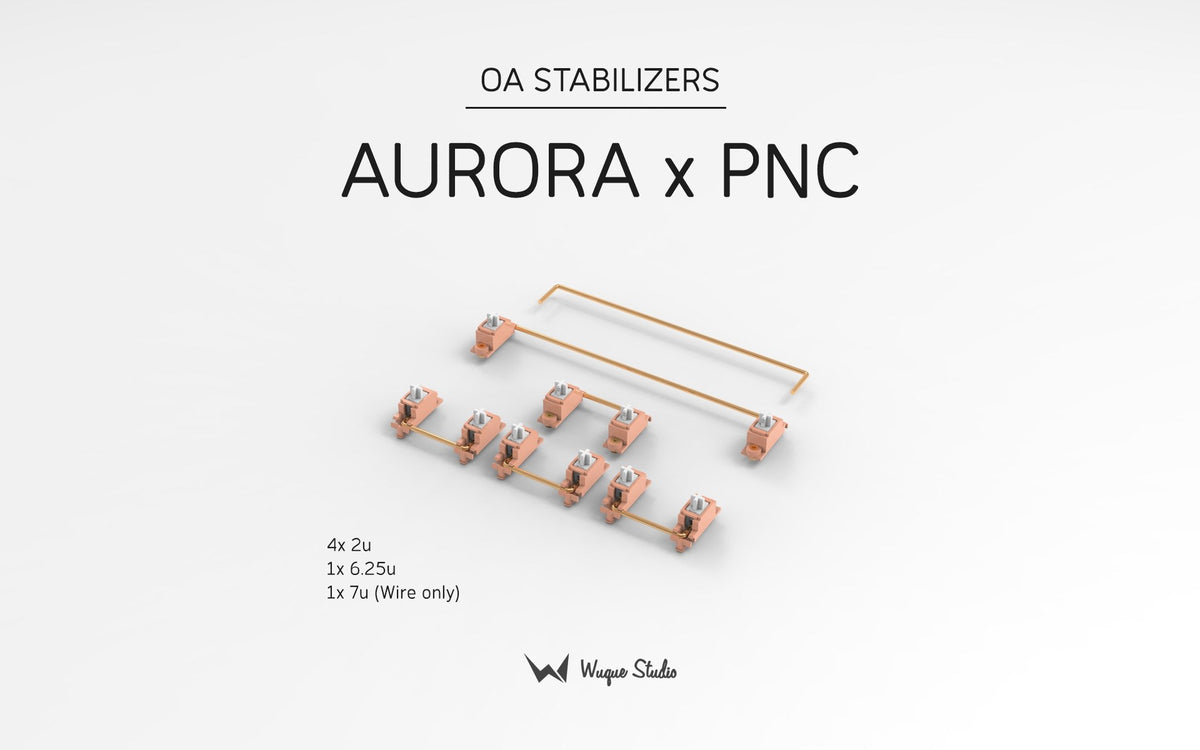

・ PnC theme stabilizer set (6 + 1 * 6.25) x1
・ Spare screw, diode, socket, rubber foot set x1
・ Hexagonal screwdriver x1

PCB

Ikki68 Aurora GB offers 3 PCBs.

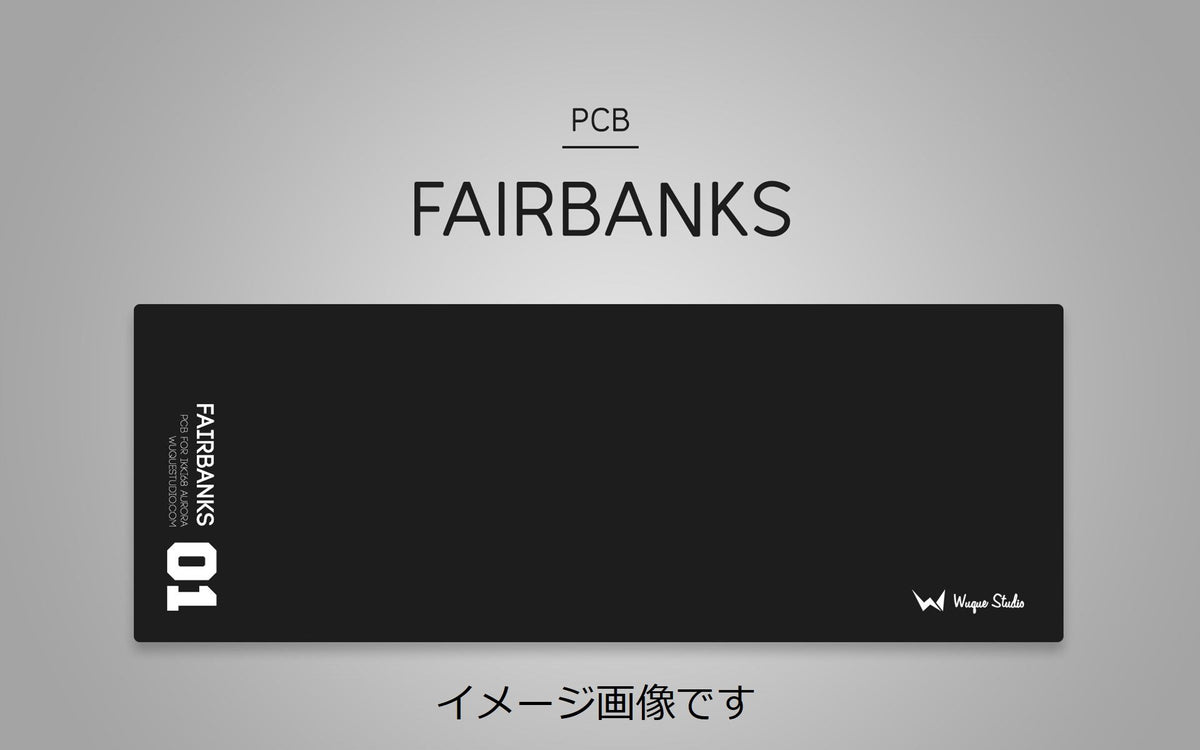

-Fairbanks are PCBs included in the kit. It provides QMK, wired, hot swap, and multi-layout support. Underglow, but there is no LED for each key.

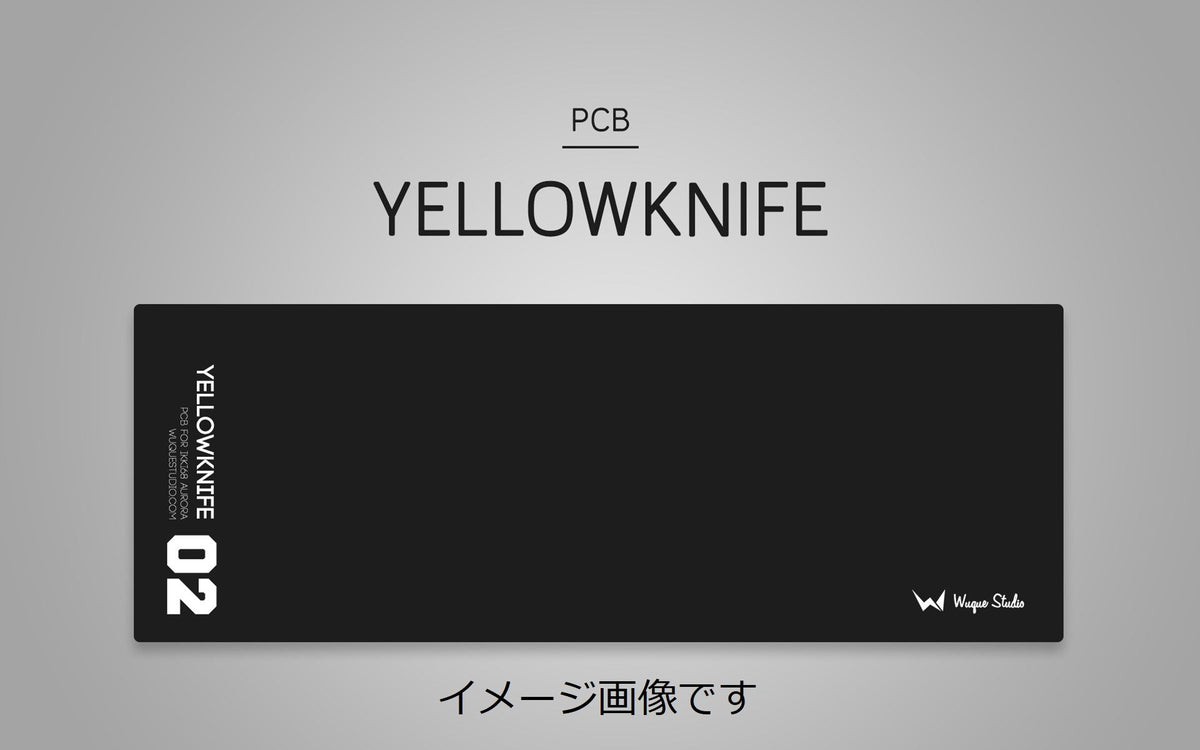

-Yellowknife has the same layout as Fairbanks, but requires soldering instead of hot swap.

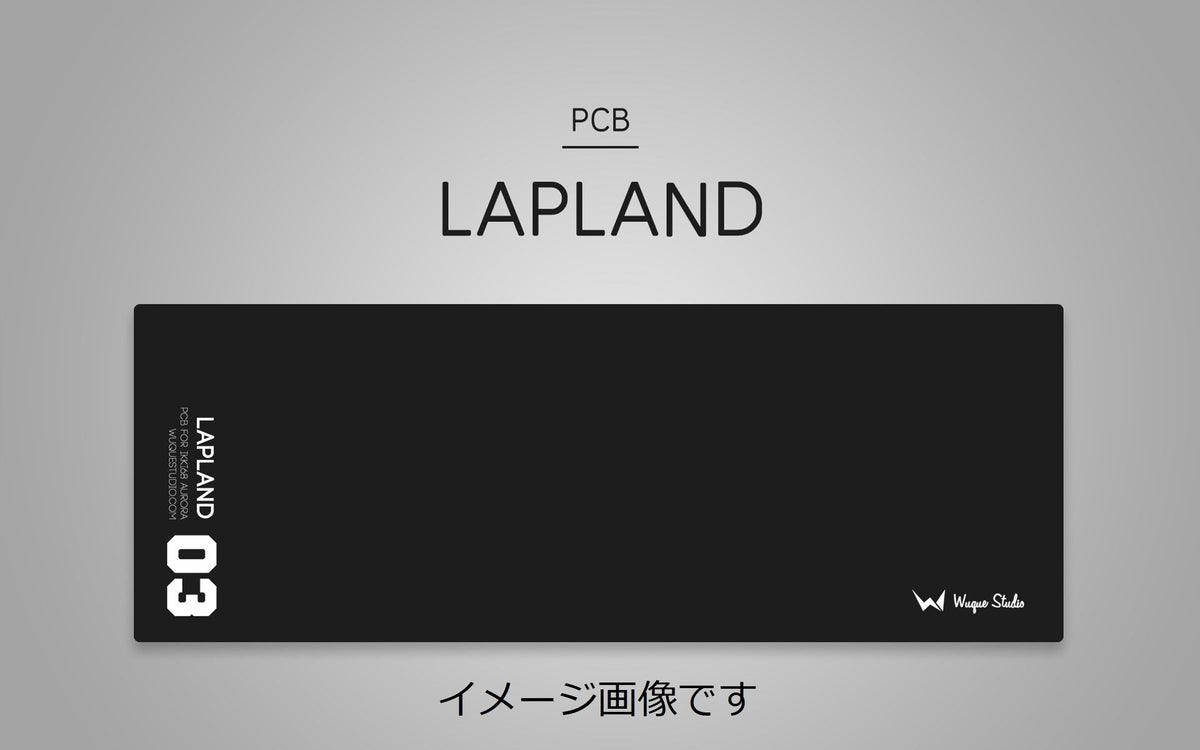

Lapland is similar to Yellowknife, but at the expense of some layout support, it provides per-key LEDs.

  Fairbanks Yellowknife Lapland
Connection method Wired Wired Wired
Switch mount Hot swap Soldering Soldering
firmware QMK / VIA QMK / VIA QMK / VIA
Underglow RGB Lighting
RGB lighting for each key × ×
PCB mount stabilizer
Stepped Caps Lock support
ISO Enter support
Split Spacebar support
Split Backspace support ×
Split Left Shift support ×
Split Right Shift support ×

Optional item

· Extra PCB – The kit includes Fairbanks. Other PCBs can be purchased additionally.

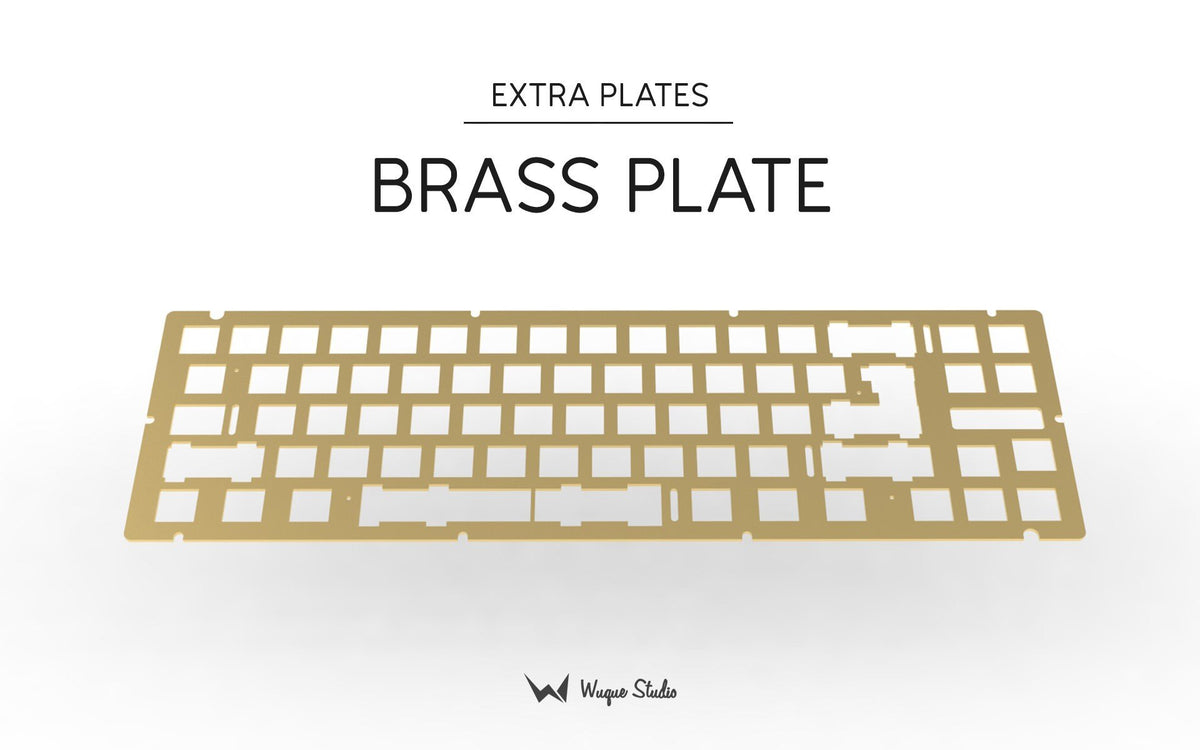

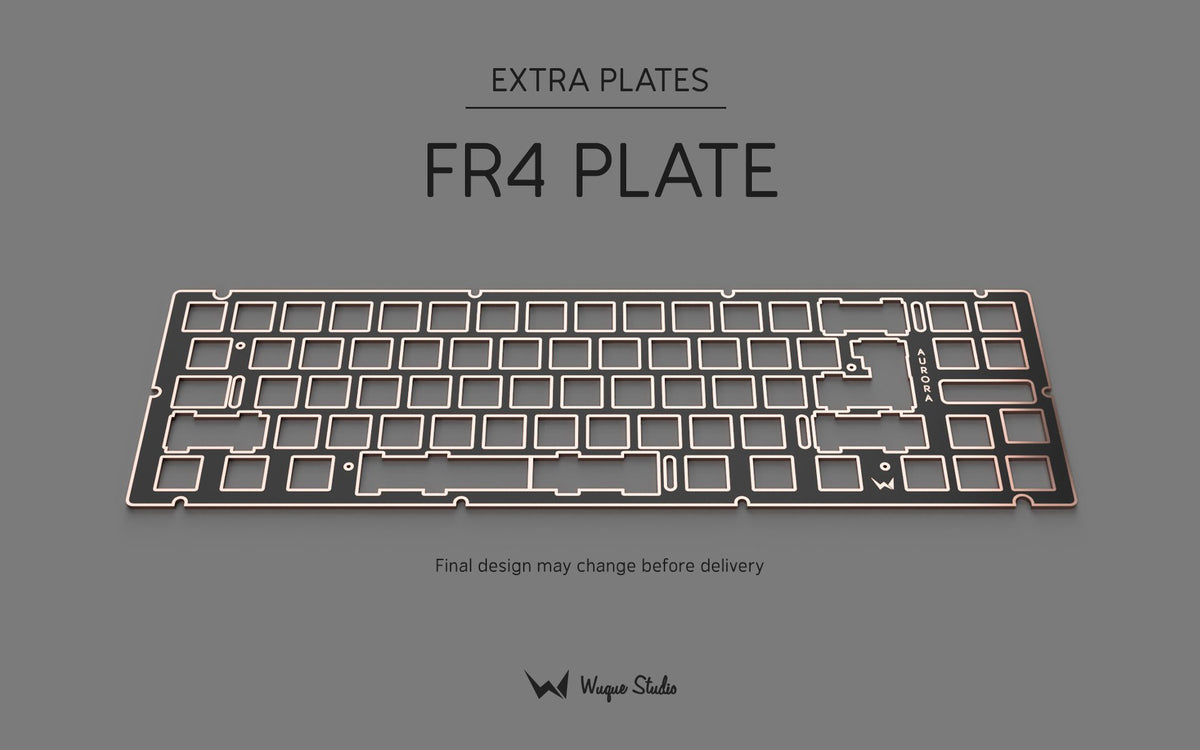

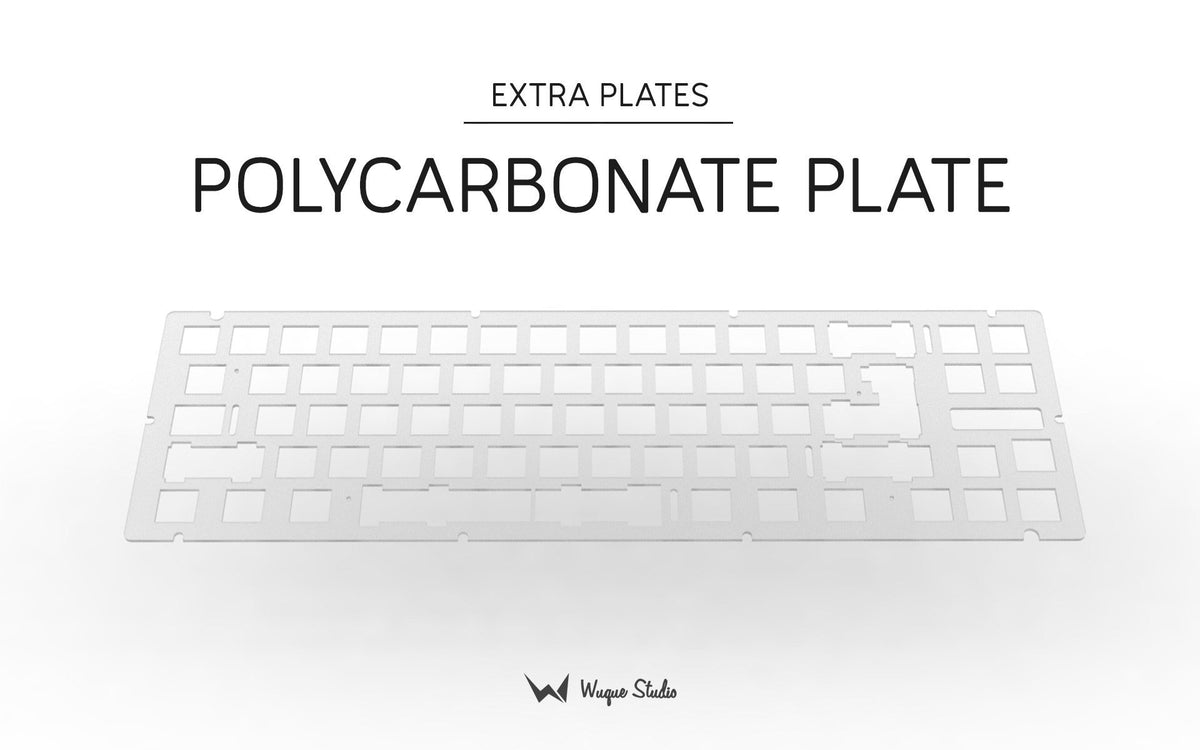

-Extra Plate-The kit includes an aluminum plate. Polycarbonate, brass and FR4 plates can be purchased additionally.

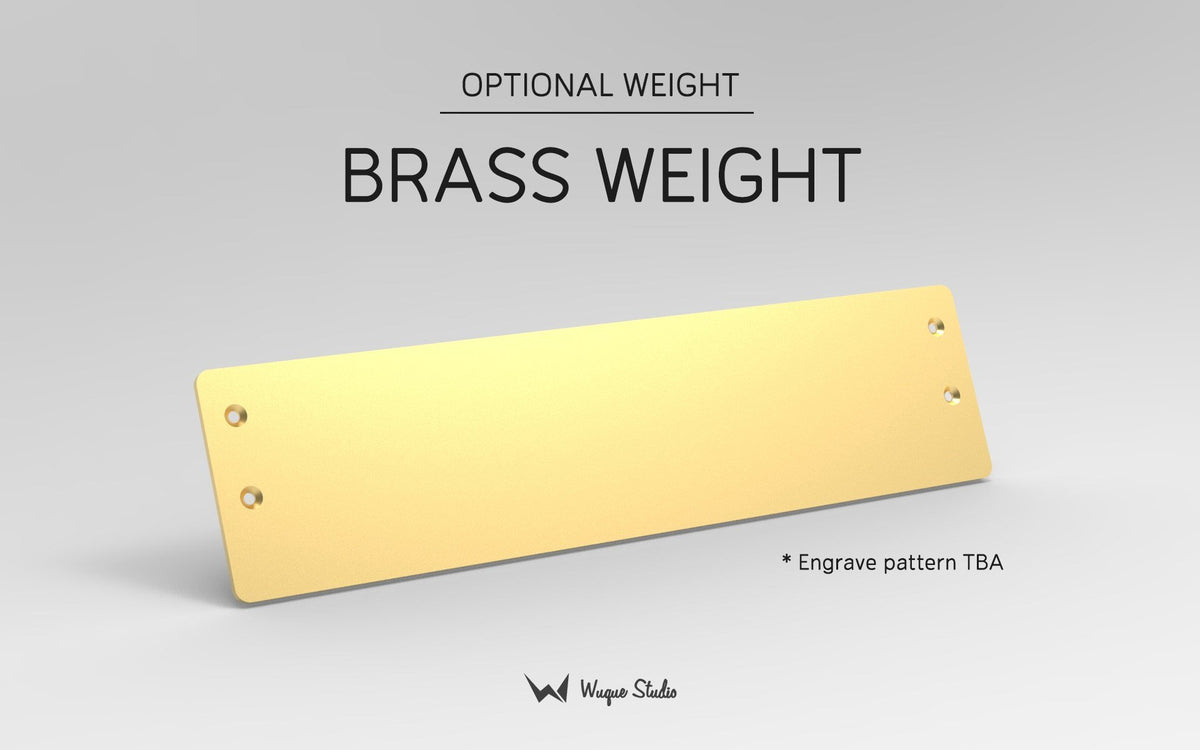

· Extra Brass Weight – The kit does not include weights. Please purchase more if necessary.
· Extra Gaskets Set – Included in the kit but can be purchased additionally.
· PnC Theme Stabilizer – Included in the kit but can be purchased additionally.
· Storage Bag – Included in the kit but can be purchased additionally.

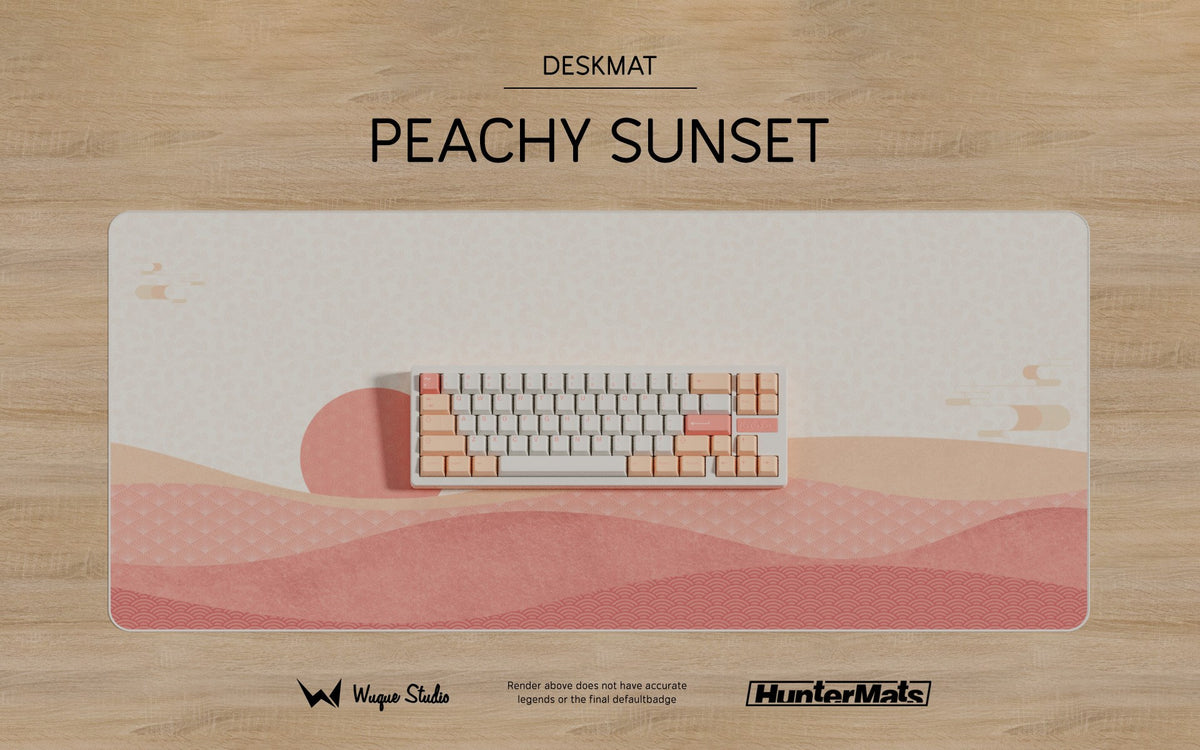

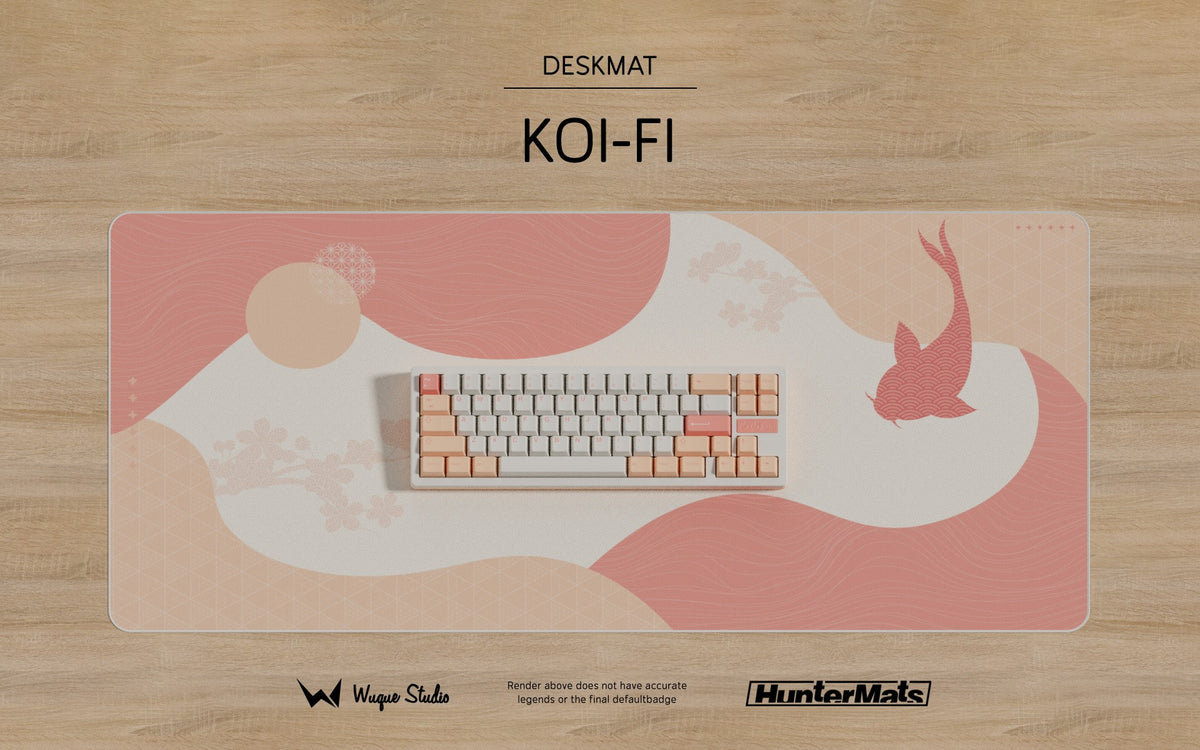

Desk mat (sold separately)

gallery
